Choosing the Perfect Material for your Orthosis

The most appropriate material for effective orthotic fabrication

Choosing an appropriate thermoplastic material is one of the most important aspects of orthotic fabrication. It’s the first step to take, after you have evaluated your patient.

Our wide variety of thermoplastic materials gives you all the options to perfectly customize the orthosis to your patient’s needs. If you understand the properties and possibilities of each material, you will always be able to make an informed decision.

Here are 6 points to consider when making decisions about the specific thermoplastic material to use for any given orthosis:

1. Thick or thin?

Consider the size of the extremity and the specific body part to be immobilized.

3.2 mm (1/8”) thick materials can be used to make orthoses for large adults, orthoses that include multiple joints and orthoses that must protect large joints and or compromised injuries.
2.0 mm (1/12”) or 2.5 mm (3/22”) materials are great for circumferential wrist designs or hand based orthoses, and even for thumb orthoses.

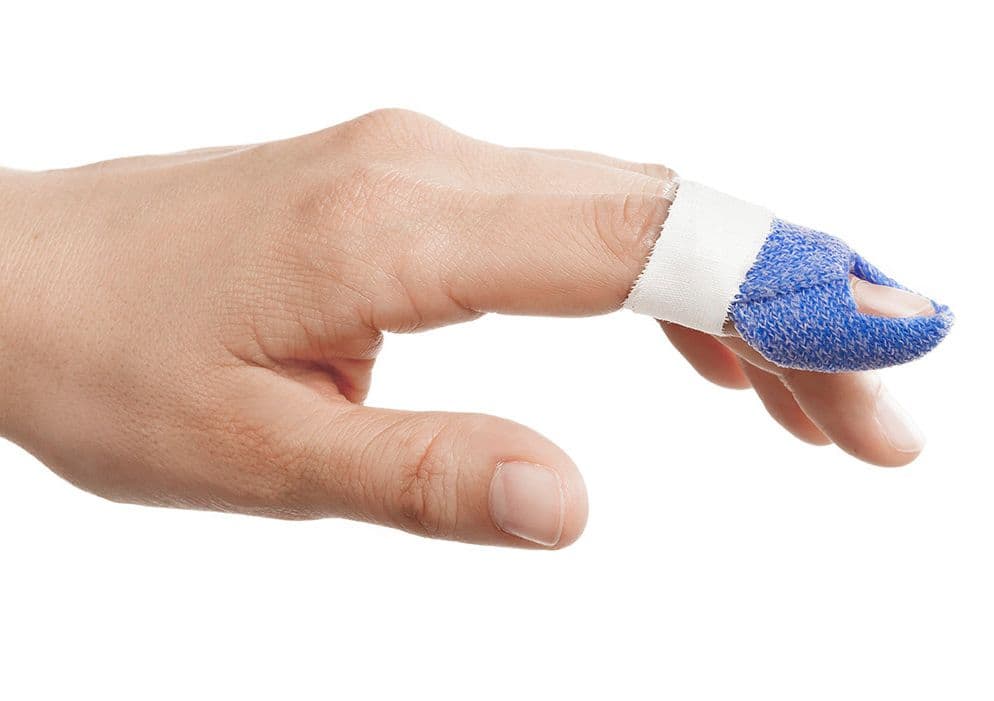

1.6 mm (1/16”) materials are ideal to fabricate orthoses for children and for fingers and thumbs. You could even use Orficast and/or Orficast More for these types of orthoses.

2. Perforated patterns versus solid materials

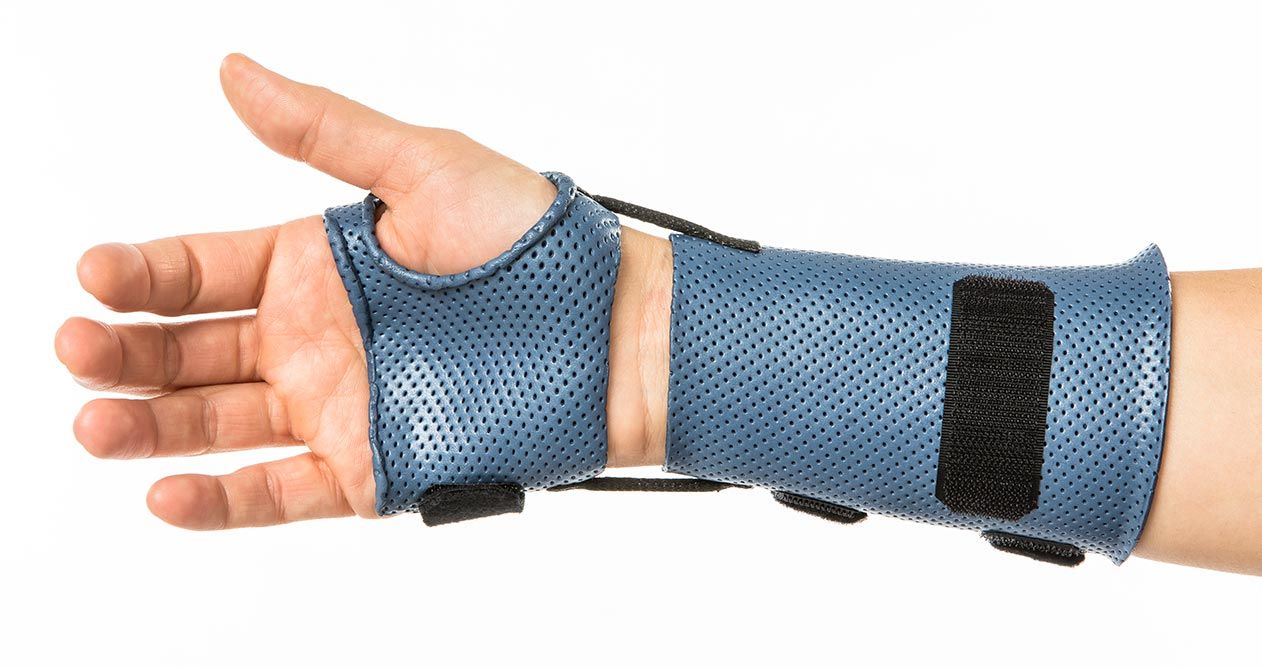

In the hot summer months, perforated materials should be your go-to choice. Patients will have a hard time wearing a purely solid thermoplastic orthosis on their injured arm without any ventilation or air getting through to the skin.

Perforated materials do require some advanced cutting skills, and extra work smoothing out the rough edges. Make sure to stretch the material evenly so all of the perforations remain equal in size.

Patients will appreciate a cotton stockinette sleeve worn underneath the orthosis to absorb perspiration.

3. Rigid or conforming?

Consider the purpose of the orthosis and the specific placement on the extremity. Does the orthosis need to maintain a volar based anti-tone position or protect a displaced fracture? Choose a material with a high degree of rigidity, like Orfit Eco, or Orfibrace.

On the other spectrum, will the intended orthosis be placed on the dorsum of the hand? A highly conforming material, like Orfilight NS, is better suited for draping over the flexed MCP joints and the prominent ulnar head.

Or select our Multifit NS material which if highly conforming yet becomes very rigid when the orthosis is formed.

4. Non-stick coated or non-coated?

Non-stick (NS) coated materials will not bond accidentally to themselves (or the towel) and are generally easier to work with than non-coated materials. NS coated materials can be pinched together to form circumferential orthoses and then popped open when the material has cooled. This technique is much more difficult with non-coated materials.

Choose non-coated materials when you need to attach outriggers or bond layers together firmly. But the coating can also be scraped off on NS coated materials, and then the material can be heated with dry heat to form permanent bonds.

5. High or low memory?

Memory is the material’s ability to return to its former size after being activated in hot water, stretched and molded. All thermoplastic materials will revert to a flattened state when put back into hot water.

Products with memory will shrink back to the starting shape and size. This allows the therapist to remake an orthosis if there was a problem with the original positioning or if the patient now has less edema than previous and the orthosis needs to be reformed and remolded.

Choose a product with memory, like Orfit Classic, Orfit Colors NS and Orfit NS, as this is an important consideration.

6. Light or heavy?

Please consider the additional weight burden the orthosis will place on the patient’s injured extremity. If possible, choose the material that meets all of the above criteria but is the lightest weight possible.

Heavy materials might be required for patients with high tone or larger limbs. But smaller frame adults, the elderly, and pediatric patients will all benefit from lighter orthoses made from lighter materials such as Orfilight and Orfilight NS products as well as Orficast and Orficast More.

Hopefully these 6 points will help you in the decision -making process. Think of these key points when it’s time to fabricate an orthosis for a orthosis new patient.

Overtime, these concepts will become second nature and you will gravitate towards the best and most appropriate material for any given orthosis.

Consider the weight of the orthosis. If possible choose a lightweight material, such as Orfilight NS.
